Solid state relay MC-SSR/AC |
 |
 |
 |
|
Written by emmeci
|
|
Monday, 30 November 2009 14:10 |
|
|
|
MC-SSR/AC is a solid state relay for piloting loads in alternating current.
It is particularly suitable for replacing electro-mechanical relays in applications that require speed, repeatability and durability.
It is available in two versions:
- MC-SSR/AC30 for piloting loads at 30Vac
- MC-SSR/AC220 for piloting loads at 230Vac
Its compactness makes it suitable for use in systems where the space occupied is of crucial importance.
|
SPECIFICATIONS
| DIMENSIONS (lenght x width x height) |
93 x 30 x 56 mm |
| FISSAGGIO |
|
| CONNECTIONS |
Extractable screw-on terminals for cable Ø max.1.5 mm |
INPUT VOLTAGE
|
5-30Vcc
|
| VOLTAGE PILOTED ON OUTPUT |
- MC-SSR/AC30: MAX 30Vac
- MC-SSR/AC220: MAX 230Vac |
| MAX OUTPUT CURRENT |
|
| MAX OPERATING TEMPERATURE * |
40°C |
| INSULATION VOLTAGE |
2KV |
* Maximum ambient temperature withstood by the device used in maximum load conditions.

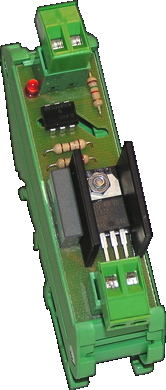

MC-SSR/AC |
|
