Adjustable switching power supplier PWR-SW01 |
 |
 |
 |
|
Written by emmeci
|
|
Friday, 27 April 2007 23:43 |
|
 |

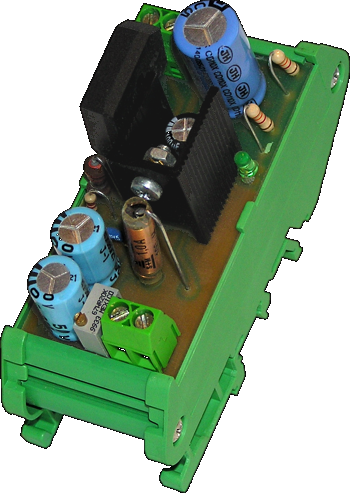

PWR-SW01 is an adjustable switching power supplier suitable for supplying equipment working with voltages between 5 and 24Vdc.
Its compactness makes it suitable for use in systems where the space occupied is of crucial importance.
The possibility to easily adjust its output voltage with an ample range means that it can be used as a non-standard voltage generator.
|
| DIMENSIONS (lenght x width x height) |
35 x 77 x 57 mm |
| FIXTURE |
DIN guide
|
| CONNECTIONS |
Screw-on terminals for cable max.1.5 mm |
INPUT VOLTAGE WITH 24V OUTPUT
|
24-35Vac or 30-46Vcc |
OUTPUT VOLTAGE
|
Adjustable between 5 and 26Vcc (with Vin=24Vac) |
| MAX. OUTPUT CURRENT IN CONTINUOUS OPERATION |
0,5A (with Vout=24V) |
| PEAK CURRENT |
2A |
| SWITCHING FREQUENCY |
52KHz |
| RIPPLE: |
at 100Hz: <120mV with Vin=24Vac and Vout=24Vdc, Iout=0,5A
at 52KHz: <100mV with Vin=24Vac and Vout=24Vdc, Iout=0,5A
|
| MAX. ADMITTED WORKING TEMPERATURE |
Ambient temperature= 40°C without forced ventilation and with output = 0.5A / 24Vdc |
| OUTPUT |
>85% |
To stabilise the output voltage efficiently, the input voltage must be higher than the minimum voltage indicated in the following graph:
|
|
